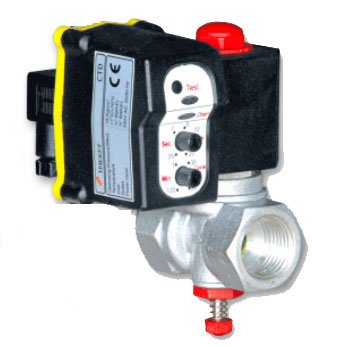

Automatic Drain Valves CTD 11-B

CTD (Compact Timer Drain) Series Valves are timer based automatic drain valves. The valves are specially designed for dirty condensate. The controller is designed for dirty and harsh outdoor conditions. The valve has a large orifice and special solenoid operator section to discharge contaminated condensate. Should the valve still get clogged you can service it without removing from line. Press the knob at the bottom of the valve to mechanically clear all the sludge. Electronically flush a few times and now it is fully serviced and ready to use.

 Features:

  • Easy to mount at all locations
  • Condensate discharging is no more problem
  • On and Off timing adjustable
  • Large orifice for effective drain of dust and condensate
  • Maintain and clean drain valve without removing from service
  • Design Patented
  • With CE mark

 Application:

  • Air Receivers
  • Drop Legs
  • Refrigerated Dryers
  • Filter
  • Separators



Drain_Valve_Timer_Type_Series_CTD

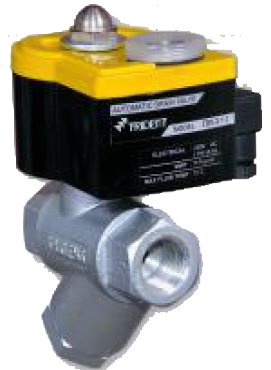

Electronic Auto Drain Valves EDV-X Series

EDV-X (Electronic Drain Valve) are timer based automatic drain valves. Ranging from 16 Bar to 70 Bar also has an exclusive model with SS body. It is generally selected as per the required air flow & pressure. Designed especially to drain sludge and rust laden condensate.

Features:

  • More than 2 Lakhs Installations
  • Designed specially to drain sludge and rust laden condensate
  • Reliable all digital electronic circuitry
  • ON and OFF timing adjustable
  • Power & Drain status indicator
  • Extended cycle time upto 32 hrs. adjustable

Application:

  • Air Receivers
  • Drop Legs
  • Refrigerated Dryers
  • Filter
  • Separators



edv

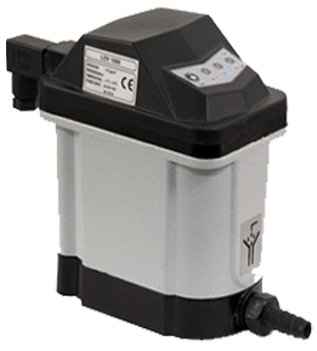

Condensate Sensing Drain Valve LDV SERIES

The LDV series condensate sensing type automatic drain valve is the latest advancement in drain valve technology. These valves sense the condensate level for activation, ensuring absolutely no loss of compressed air and hence results in enormous energy saving. Trident condensate sensing type drain valves are highly efficient and reliable. Fault tolerant system is switching over into timer mode automatically while LDV fails to operate due to sensor failure. Timing cycle is every 2 mins for a period of 2 seconds.

Features

  • The electronic level control ensures proper draining of condensate and avoids unnecessary loss of air.
  • All the functions of the valve are accurately indicated by the LED display.
  • Test switch (or) manual drain allows function test at any time.
  • Intelligent Controller detects valve, probe failure and acts accordingly.
  • Noise free, as air is not discharged..
  • Inbuilt fault tolerant system ensures continued operation of drain valves.

 Highlights

  • Zero Air Loss
  • Design Patented
  • Noise Free
  • Fault tolerant system



Condensate_Sensing_Drain_Valve_SeriesLDV
